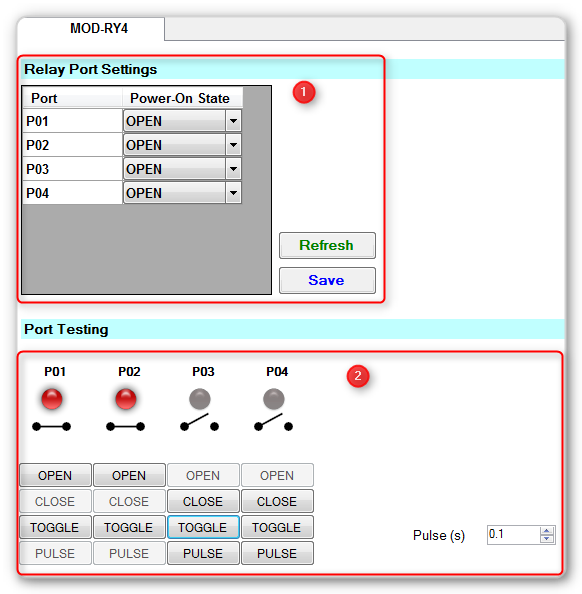

This is where you set the power on state for each of the relays in your MOD-RY4.
The options available are:
Refresh button will request the settings from the device and display them in System Commander. You will lose any unsaved settings when you click this button.
Save Button will save any settings you have entered in System Commander to the device.
Use this section to manually test each relay on the CF Mini. The image shows the current relay state as per below image.
The buttons allow you change the state in real time of each relay.
Openbutton will change the relay state to open
Closebutton will change the relay state to close
Togglebutton will toggle the relay between open and close
Pulsebutton will pulse the relay for the amount of time set in the
Pulse (s)box. The measurement is in seconds.
