CHAnotifications on the bus and via Ethernet. You can still poll the unit for it's state when required.

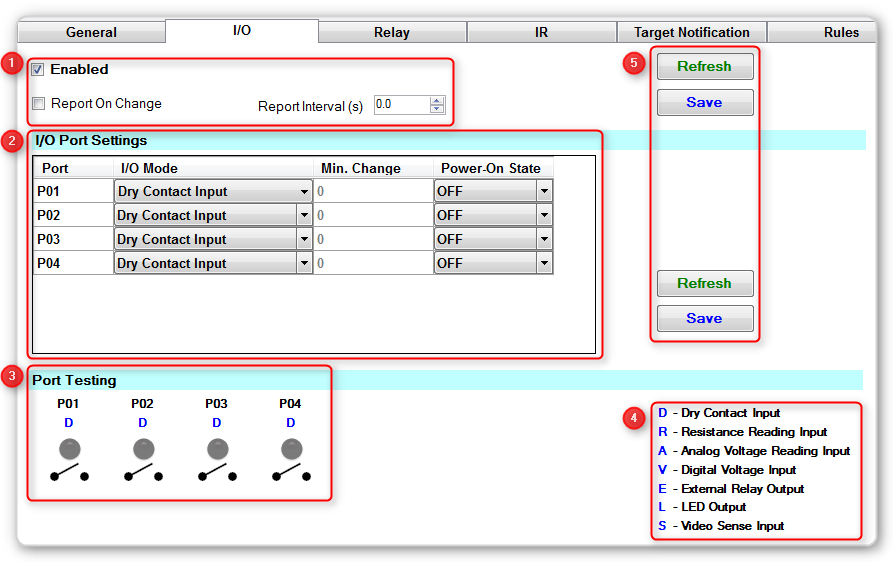

Select the mode of each IO port individually. The modes are documented in more detail on the CFLink Protocol - IO wiki entry
This sections shows the live state of the IO ports, so long as they are enabled.
The legend for the port settings code shown above each port in the port testing section.
The buttons are relevant to all options within their area. So the save button will only save the options that are alongside it, and same for the refresh button.
Refresh button will request the settings from the device and display them in System Commander. You will lose any unsaved settings when you click this button.
Save Button will save any settings you have entered in System Commander to the device.
